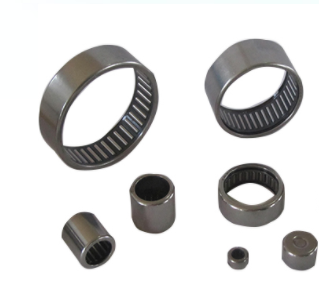

满针型 |  |

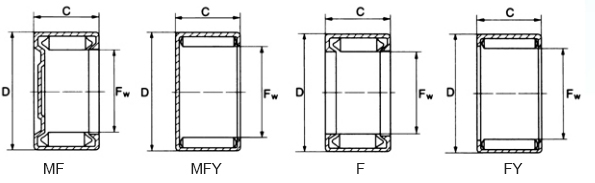

MF,MFY,F,FY | |
轴径 | 轴承型号 | 外 型 尺 寸 | 基本额定负荷 | 极限转速 | ||||
现行的 | 原型的 | FW | D | C | 动 C | 静 Co | 油润滑 | |
mm | mm | N | rpm | |||||
3.175 | F3.175X6.35X6.35 | B-24 | 3.175 | 6.35 | 6.35 | 3200 | 5900 | 19000 |
4.762 | F4.762X8.731X6.35 | B-34 | 4.762 | 8.731 | 6.35 | 3400 | 6000 | 19000 |
6.35 | F6.35X11.11X11.13 | B-47 | 6.35 | 11.11 | 11.13 | 3500 | 6050 | 12000 |
MF6.35X11.11X11.13 | M-471 | 6.35 | 11.11 | 11.13 | 3500 | 6050 | 12000 | |
8 | F-0810 | 50941/8 | 8 | 12 | 10 | 4050 | 7150 | 13000 |
FH-0810 | 941/8 | 8 | 14 | 10 | 5200 | 7150 | 7400 | |
FH-0812 | 942/8 | 8 | 14 | 12 | 4550 | 7150 | 7400 | |
9 | FH0910 | 50941/9 | 9 | 13 | 10 | 4900 | 8050 | 12000 |
FH0910 | 941/9 | 9 | 15 | 10 | 8000 | 11500 | 7100 | |
FH9X15X13 | 942/9 | 9 | 15 | 13 | 8560 | 12800 | 7100 | |
9.52 | F9.52X14.29X12.7 | B-68 | 9.52 | 14.29 | 12.70 | 9000 | 13300 | 7100 |
10 | F-1010 | 50941/10 | 10 | 14 | 10 | 5700 | 9350 | 11000 |
FH-1010 | 941/10 | 10 | 16 | 10 | 6350 | 10800 | 11000 | |
F10X16X15 | 942/10 | 10 | 16 | 15 | 6890 | 11500 | 7100 | |
943/10 | 10 | 16 | 17 | 6500 | 11000 | 7000 | ||
12 | F-1212 | 60941/12 | 12 | 16 | 12 | 6380 | 10900 | 7100 |
F12X17X12 | 941/12 | 12 | 17 | 12 | 8400 | 11900 | 7100 | |
F12X17X15 | 942/12 | 12 | 17 | 15 | 9000 | 12500 | 7100 | |
F12X17X18 | 943/12 | 12 | 17 | 18 | 9800 | 13500 | 7100 | |
15 | F15X20X12 | 941/15 | 15 | 20 | 12 | 8400 | 11900 | 7100 |
F15X20X16 | 942/15 | 15 | 20 | 16 | 9500 | 12800 | 7100 | |
F15X20X20 | 943/15 | 15 | 20 | 20 | 10500 | 16000 | 7100 | |
FY15X20X20 | Y152020 | 15 | 20 | 20 | 10500 | 16000 | 7100 | |
F-1512 | 30941/15 | 15 | 21 | 12 | 9700 | 15900 | 8100 | |
16 | F-1616 | 50941/16 | 16 | 22 | 16 | 14100 | 25900 | 7700 |
17 | F-1712 | 30941/17 | 17 | 23 | 12 | 10600 | 21600 | 7300 |
F-1714 | 941/17 | 17 | 23 | 14 | 12500 | 22500 | 7300 | |
F-1718 | 942/17 | 17 | 23 | 18 | 13800 | 24800 | 7300 | |
943/17 | 17 | 23 | 22 | 13500 | 24000 | 7100 | ||
18 | F1816 | 50941/18 | 18 | 24 | 16 | 15000 | 29100 | 6900 |
20 | F-2014 | 941/20 | 20 | 26 | 14 | 15800 | 40500 | 6900 |
F-2020 | 942/20 | 20 | 26 | 20 | 18800 | 42500 | 6900 | |
F20X26X25 | 943/20 | 20 | 26 | 25 | 20500 | 35500 | 6300 | |
25 | F-2516 | 941/25 | 25 | 32 | 16 | 18700 | 37900 | 5100 |
F-2522 | 942/25 | 25 | 32 | 22 | 11000 | 16500 | 5100 | |
F25X32X25 | 943/25 | 25 | 32 | 25 | 11500 | 18500 | 5100 | |
F25X33X08 | Y253308 | 25 | 33 | 8 | 12200 | 16800 | 4300 | |
28 | F-2820 | 60941/28 | 28 | 35 | 20 | 25700 | 58300 | 4600 |
30 | F-3020 | 60941/30 | 30 | 37 | 20 | 26800 | 62500 | 4300 |
30 | MF-3020 | 65941/30 | 30 | 37 | 20 | 26800 | 62500 | 4300 |
F30X38X16 | 941/30 | 30 | 38 | 16 | 25500 | 57500 | 4600 | |
F30X38X24 | 942/30 | 30 | 38 | 24 | 28800 | 64500 | 4300 | |
F30X38X32 | 943/30 | 30 | 38 | 32 | 34500 | 78900 | 4300 | |
32 | F-3216 | 40941/32 | 32 | 39 | 16 | 25800 | 61500 | 4300 |
35 | F3520 | 60941/35 | 35 | 42 | 20 | 24000 | 69100 | 3700 |
F35X43X16 | 941/35 | 35 | 43 | 16 | 23500 | 68000 | 3700 | |
F35X43X25 | 942/35 | 35 | 43 | 25 | 38700 | 86200 | 3200 | |
F35X43X32 | 943/35 | 35 | 43 | 32 | 40500 | 97800 | 3200 | |
40 | F-4020 | 60941/40 | 40 | 47 | 20 | 30300 | 82600 | 3300 |
FH4032 | 942/40 | 40 | 50 | 32 | 42500 | 108000 | 2600 | |
MFH-4032 | 86942/40 | 40 | 50 | 32 | 42500 | 108000 | 2600 | |
FH40X50X38 | 943/40 | 40 | 50 | 38 | 44800 | 118500 | 2600 | |
45 | F-4520 | 45 | 52 | 20 | 30400 | 90100 | 2900 | |
FH45X55X38 | 943/45 | 45 | 55 | 38 | 45800 | 128000 | 2900 | |
50 | F-5020 | 50941/50 | 50 | 58 | 20 | 35800 | 98000 | 2600 |
FH50X60X38 | 943/50 | 50 | 60 | 38 | 50500 | 145800 | 2600 | |
60 | F60X68X40 | 943/60 | 60 | 6 | 40 | 50200 | 145000 | 2600 |
