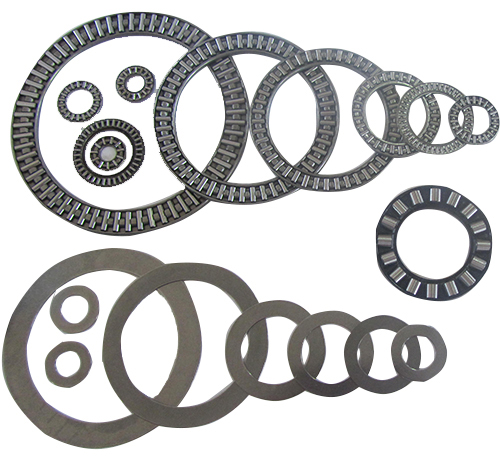

推力滚针和保持架组件 | [object Object] |
|
AXK,AS,LS | ||
推力垫圈 | ||
GS811,WS811 | ||
轴径 mm | 推力滚针和保持架组件 | 推力轴承垫圈系列 | 外 型 尺 寸 | ||||
推力垫圈 | 轴承垫圈 | 座圈 | 轴圈 | Dc1 d | D1 | ||
4 | AXK0414TN | AS 0414 | -- | -- | -- | 4 | -- |
5 | AXK0515TN | AS 0515 | -- | -- | -- | 5 | -- |
6 | AXK0619TN | AS 0619 | LS 0619 | -- | -- | 6 | -- |
8 | AXK0821TN | AS 0821 | LS 0821 | -- | -- | 8 | -- |
10 | AXK1024 | AS 1024 | LS 1024 | -- | -- | 10 | -- |
12 | AXK1226 | AS 1226 | LS 1226 | -- | -- | 12 | -- |
15 | AXK1528 | AS 1528 | LS 1528 | GS 81102 | WS 81102 | 15 | 16 |
17 | AXK1730 | AS 1730 | LS 1730 | GS 81103 | WS 81103 | 17 | 18 |
20 | AXK2035 | AS 2035 | LS 2035 | GS 81104 | WS 81104 | 20 | 21 |
25 | AXK2542 | AS 2542 | LS 2542 | GS 81105 | WS 81105 | 25 | 26 |
30 | AXK3047 | AS 3047 | LS 3047 | GS 81106 | WS 81106 | 30 | 32 |
35 | AXK3552 | AS 3552 | LS 3552 | GS 81107 | WS 81107 | 35 | 37 |
40 | AXK4060 | AS 4060 | LS 4060 | GS 81108 | WS 81108 | 40 | 42 |
45 | AXK4565 | AS 4565 | LS 4565 | GS 81109 | WS 81109 | 45 | 47 |
50 | AXK5070 | AS 5070 | LS 5070 | GS 81110 | WS 81110 | 50 | 52 |
55 | AXK5578 | AS 5578 | LS 5578 | GS 81111 | WS 81111 | 55 | 57 |
60 | AXK6085 | AS 6085 | LS 6085 | GS 81112 | WS 81112 | 60 | 62 |
65 | AXK6590 | AS 6590 | LS 6590 | GS 81113 | WS 81113 | 65 | 67 |
70 | AXK7095 | AS 7095 | LS 7095 | GS 81114 | WS 81114 | 70 | 72 |
75 | AXK75100 | AS 75100 | LS 75100 | GS 81115 | WS 81115 | 75 | 77 |
80 | AXK80105 | AS 80105 | LS 80105 | GS 81116 | WS 81116 | 80 | 82 |
85 | AXK85110 | AS 85110 | LS 85110 | GS 81117 | WS 81117 | 85 | 87 |
90 | AXK90120 | AS 90120 | LS 90120 | GS 81118 | WS 81118 | 90 | 92 |
100 | AXK100135 | AS 100135 | LS 100135 | GS 81120 | WS 81120 | 100 | 102 |
110 | AXK110145 | AS 110145 | LS 110145 | GS 81122 | WS 81122 | 110 | 112 |
120 | AXK120155 | AS 120155 | LS 120155 | GS 81124 | WS 81124 | 120 | 122 |
130 | AXK130170 | AS 130170 | LS 130170 | GS 81126 | WS 81126 | 130 | 132 |
140 | AXK140180 | AS 140180 | LS 140180 | GS 81128 | WS 81128 | 140 | 142 |
150 | AXK150190 | AS 150190 | LS 150190 | GS 81130 | WS 81130 | 150 | 152 |
160 | AXK160200 | AS 160200 | LS 160200 | GS 81132 | WS 81132 | 160 | 162 |
