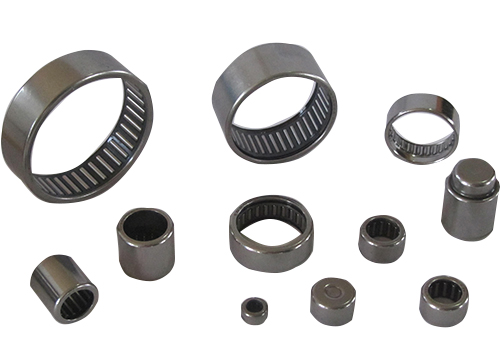

冲压外圈滚针轴承 |
HK BK |
HK,BK | |
轴径 | 轴承型号 | 外 型 尺 寸 | 基本额定负荷 | 极限转速 | ||||
现行的 | 原型的 | FW | D | C | 动 C | 静 Co | 油润滑 | |
mm | mm | N | rpm | |||||
3 | HK0306TN | 3 | 6.5 | 6 | 1320 | 950 | 60000 | |
BK0306TN | 3 | 6.5 | 6 | 1320 | 950 | 60000 | ||
4 | HK0408TN | 37941/4 | 4 | 8 | 8 | 1540 | 1070 | 40000 |
BK0408TN | 57941/4 | 4 | 8 | 8 | 1540 | 1070 | 40000 | |
5 | HK0509 | 47941/5 | 5 | 9 | 9 | 2200 | 1790 | 36000 |
BK0509 | 45941/5 | 5 | 9 | 9 | 2200 | 1790 | 36000 | |
6 | HK0608 | 37941/6 | 6 | 10 | 8 | 1830 | 1550 | 32000 |
HK0609 | 47941/6 | 6 | 10 | 9 | 2650 | 2400 | 3000 | |
BK 0609 | 45941/6 | 6 | 10 | 9 | 2650 | 2400 | 3000 | |
7 | HK0708 | 7 | 11 | 8 | 2800 | 2150 | 27000 | |
HK0709 | 47941/7 | 7 | 11 | 9 | 2800 | 2150 | 27000 | |
BK0709 | 45941/7 | 7 | 11 | 9 | 2800 | 2150 | 27000 | |
8 | HK0808 | 37941/8 | 8 | 12 | 8 | 2550 | 2400 | 21000 |
BK0808 | 35941/8 | 8 | 12 | 8 | 2550 | 2400 | 21000 | |
HK0810 | 57941/8 | 8 | 12 | 10 | 3700 | 3450 | 21000 | |
BK0810 | 88941/8 | 8 | 12 | 10 | 3700 | 3450 | 21000 | |
HK08X14X10 | 27942/8 | 8 | 14 | 10 | 3800 | 3950 | 25000 | |
HK08X14X12 | 37942/8 | 8 | 14 | 12 | 4100 | 4320 | 25000 | |
9 | HK0910 | 57941/9 | 9 | 13 | 10 | 4050 | 4250 | 25000 |
BK0910 | 55941/9 | 9 | 13 | 10 | 4050 | 4250 | 25000 | |
HK0912 | 67941/9 | 9 | 13 | 12 | 5000 | 6000 | 25000 | |
BK0912 | 65941/9 | 9 | 13 | 12 | 5000 | 6000 | 25000 | |
10 | HK1010 | 57941/10 | 10 | 14 | 10 | 3900 | 4800 | 19000 |
BK1010 | 55941/10 | 10 | 14 | 10 | 3900 | 4800 | 19000 | |
HK1012 | 67941/10 | 10 | 14 | 12 | 5000 | 6300 | 19000 | |
BK1012 | 65941/10 | 10 | 14 | 12 | 5000 | 6300 | 19000 | |
HK1015 | 10 | 14 | 15 | 6700 | 7800 | 19000 | ||
HK10X16X10 | 10 | 16 | 10 | 6800 | 8800 | 18000 | ||
HK10X16X12 | DB1012 | 10 | 16 | 12 | 6800 | 8800 | 18000 | |
HK10X16X15 | 7942/10 | 10 | 16 | 15 | 6800 | 8800 | 19000 | |
12 | HK1210 | 57941/12 | 12 | 16 | 10 | 4150 | 5800 | 19000 |
BK1210 | 55941/12 | 12 | 16 | 10 | 4150 | 5800 | 19000 | |
HK1212 | 67941/12 | 12 | 16 | 12 | 3800 | 5100 | 15000 | |
BK1212 | 65941/12 | 12 | 16 | 12 | 3800 | 5100 | 15000 | |
HK12X17X12 | 7941/12 | 12 | 17 | 12 | 5100 | 7000 | 15000 | |
HK12X17X15 | 7942/12 | 12 | 17 | 15 | 5100 | 7000 | 15000 | |
HK12X17X18 | 7943/12 | 12 | 17 | 18 | 5100 | 7000 | 15000 | |
HK12X18X12 | 37942/12 | 12 | 18 | 12 | 5500 | 6300 | 17000 | |
BK12X18X12 | 35942/12K | 12 | 18 | 12 | 5500 | 6300 | 17000 | |
HK12X19X12 | 12 | 19 | 12 | 6800 | 7400 | 15000 | ||
13 | HK1312 | 13 | 19 | 12 | 6200 | 7100 | 17000 | |
BK1312 | 13 | 19 | 12 | 6200 | 7100 | 17000 | ||
13.5 | HK13.5X20X12 | 7941/13.5 | 13.5 | 20 | 12 | 6250 | 7590 | 16000 |
14 | HK1412 | 37941/14 | 14 | 20 | 12 | 6800 | 7500 | 16000 |
TN=塑料保险架，允许的工作温度：120℃连续；脂润滑极限转速为表列数值的60%，特殊要求订货时说明。
